Endpoint Security Events

Each release of macOS brings a host of security fixes, but also the occasional new Endpoint Security events. Such events can extend and improve security tools that already leverage Endpoint Security.

Endpoint Security events can be found in ESTypes.h in a large es_event_type_t enum. Here are some recent events (with helpful comments from Apple when they were introduced):

% cat MacOSX26.4.sdk/usr/include/EndpointSecurity/ESTypes.h

// The following events are available beginning in macOS 13.0
    ES_EVENT_TYPE_NOTIFY_XP_MALWARE_DETECTED,
    ES_EVENT_TYPE_NOTIFY_XP_MALWARE_REMEDIATED,
    ES_EVENT_TYPE_NOTIFY_BTM_LAUNCH_ITEM_ADD,
    ES_EVENT_TYPE_NOTIFY_BTM_LAUNCH_ITEM_REMOVE,
    ...

// The following events are available beginning in macOS 15.0
    ES_EVENT_TYPE_NOTIFY_GATEKEEPER_USER_OVERRIDE,

// The following events are available beginning in macOS 15.4
    ES_EVENT_TYPE_NOTIFY_TCC_MODIFY,

While new events are often very useful to security tool writers, they may not be well documented, or may not even work as expected. So, when new ones emerge, I like to dig into them and see if they can be used to enhance Objective-See’s free open-source tools.

Previous posts on (new) Endpoint Security events include:

• TCCing is Believing: Apple finally adds TCC events to Endpoint Security!

• Writing a Process Monitor with Apple’s Endpoint Security Framework

With the release of macOS 26.4 (and MacOSX26.4.sdk), several new events were added, but for the first time ever, they were not documented — just added as “ES_EVENT_TYPE_RESERVED_*”:

% cat MacOSX26.4.sdk/usr/include/EndpointSecurity/ESTypes.h
...

    // The following events are available beginning in macOS 26.3

    ES_EVENT_TYPE_RESERVED_0,
    ES_EVENT_TYPE_RESERVED_1,
    ES_EVENT_TYPE_RESERVED_2,


    // The following events are available beginning in macOS 26.4.0

    ES_EVENT_TYPE_RESERVED_3,
    ES_EVENT_TYPE_RESERVED_4,
    ES_EVENT_TYPE_RESERVED_5,
    ES_EVENT_TYPE_RESERVED_6,

As I noted in my tweet, I’m not sure if Apple just left them out by accident …or? 🤷‍♂️

⚙️ Subscribing to Reserved Events

Well, I don’t like unsolved Apple mysteries, so let’s dig in and see what we can figure out. Here, we’ll focus on ES_EVENT_TYPE_RESERVED_5 and ES_EVENT_TYPE_RESERVED_6.

Our goal is simple: understand what these events are, and whether we can use them in our tools.

Though we might have been able to uncover the meaning of these events via static analysis, I took what proved to be a simpler approach:

1. Subscribe (via es_subscribe) to the new ES events and wait for them to be delivered
2. Print out the raw bytes of the event’s message contents
3. (non)Profit!

I’ll assume you’re familiar with ES basics, and just dive into the code:

 1es_event_type_t reservedEvents[] = {
 2        ES_EVENT_TYPE_RESERVED_0,
 3        ES_EVENT_TYPE_RESERVED_1,
 4        ES_EVENT_TYPE_RESERVED_2,
 5        ES_EVENT_TYPE_RESERVED_3,
 6        ES_EVENT_TYPE_RESERVED_4,
 7        ES_EVENT_TYPE_RESERVED_5,
 8        ES_EVENT_TYPE_RESERVED_6,
 9};
10
11es_new_client(&client, ^(es_client_t *client, const es_message_t *message) {
12
13    printf("[*] event type: %d\n", message->event_type);
14    printf("    action_type: %s\n", message->action_type == ES_ACTION_TYPE_AUTH ? "AUTH" : "NOTIFY");
15
16}
17
18uint32_t reservedCount = sizeof(reservedEvents) / sizeof(reservedEvents[0]);
19for(uint32_t i = 0; i < reservedCount; i++) {
20
21        es_event_type_t single[] = { reservedEvents[i] };
22        es_return_t result = es_subscribe(client, single, 1);
23        printf("RESERVED_%u (type=%d): %s (result=%d)\n", i, reservedEvents[i],
24               result == ES_RETURN_SUCCESS ? "subscribed" : "failed", result);
25}

After declaring the events of interest (all the new ES_EVENT_TYPE_RESERVED_* ones) we create an ES client via es_new_client. In its callback, we just print out the event type and action type. (Shortly we’ll flesh out this callback more).

Next, in a loop we subscribe to each event, effectively telling the ES subsystem to invoke the callback (passed to es_new_client) anytime any of the (yet to be understood) events occur anywhere on the system.

Compiling this code into a binary that is appropriately entitled with com.apple.developer.endpoint-security.client, let’s give it a run!

# ./newESEvents

RESERVED_0 (type=148): failed (result=1)
RESERVED_1 (type=149): failed (result=1)
RESERVED_2 (type=150): failed (result=1)
RESERVED_3 (type=151): subscribed (result=0)
RESERVED_4 (type=152): subscribed (result=0)
RESERVED_5 (type=153): subscribed (result=0)
RESERVED_6 (type=154): subscribed (result=0)
...

Interestingly, for reasons unknown, ES_EVENT_TYPE_RESERVED_0 - _2 fail. Maybe they are not yet implemented? However, the remaining ones succeed!

🐛 A (Now Patched) Kernel Panic

Previously I (vaguely) tweeted about a kernel panic in Apple’s EndpointSecurity kernel extension:

As it is now patched (in macOS 26.4), we can discuss it — though as we’ll see, it’s not really a security issue per se, but a rather trivial bug.

A while back I wondered what would happen if you tried to subscribe via es_subscribe to events “past” (above) the final ES event ES_EVENT_TYPE_LAST:

1    // ES_EVENT_TYPE_LAST is not a valid event type but a convenience
2    // value for operating on the range of defined event types.
3    // This value may change between releases and was available
4    // beginning in macOS 10.15
5    ES_EVENT_TYPE_LAST
6} es_event_type_t;

Turns out the kernel would simply panic 😱. Specifically, it would detect an attempted out-of-bounds read and invoke panic. No real security issue per se (plus, to call es_subscribe you have to be an entitled ES client running as root). Still, happy Apple fixed their buggy kernel code!

🕵🏻‍♂️ ES_EVENT_TYPE_RESERVED_5 & ES_EVENT_TYPE_RESERVED_6

Ok, let’s continue!

Recall we’ve registered for ES_EVENT_TYPE_RESERVED_3 - _6. Good news: immediately our callback is invoked, meaning that even though we don’t know what these events are, they’re happening somewhere on the system and being delivered to us.

# ./newESEvents

[*] event type: 153
    action_type: AUTH


[*] event type: 154
    action_type: NOTIFY

Specifically we first see an ES_EVENT_TYPE_RESERVED_5 (153) event, followed by an ES_EVENT_TYPE_RESERVED_6 (154) event. Endpoint Security events often come in pairs (such as ES_EVENT_TYPE_AUTH_EXEC and ES_EVENT_TYPE_NOTIFY_EXEC), with one for authorization (that you must respond to), and one passive notify event. Here, we can see the first is an AUTH, while the second is a NOTIFY event. We can reasonably assume these are the same event type, just one of each flavor.

Now, each ES event message starts with a standard header that contains information about, for example, the responsible process. This is then followed by event-specific data. So even though we don’t know what these events are, we can extend the callback code to print out the standard ES event message header, which tells us what process is responsible for generating the event.

1if(message->process) {
2    printf("    process pid: %d\n", audit_token_to_pid(message->process->audit_token));
3    printf("    process path: %s\n", message->process->executable->path.data);
4    printf("    process uid: %d\n", audit_token_to_euid(message->process->audit_token));
5    printf("    is platform binary: %d\n", message->process->is_platform_binary);
6}

Recompiling and rerunning the code, we now get more information about the events:

# ./newESEvents

[*] event type: 153
    action_type: AUTH

    process pid: 434
    process path: /usr/sbin/mDNSResponder
    process uid: 65
    is platform binary: 1


[*] event type: 154
    action_type: NOTIFY

    process pid: 434
    process path: /usr/sbin/mDNSResponder
    process uid: 65
    is platform binary: 1

We can see first the ES_EVENT_TYPE_RESERVED_5 (an AUTH) event generated by mDNSResponder, followed immediately by a ES_EVENT_TYPE_RESERVED_6 (a NOTIFY) event also associated with mDNSResponder. (mDNSResponder is Apple’s DNS resolution daemon, the system process responsible for all DNS lookups on macOS.)

Now, as noted, after the ES message header (which is the same format for any/all ES messages) comes a pointer to event-specific data. We don’t know the format of this data yet, so let’s just print out the raw bytes:

 1const uint8_t *raw = (const uint8_t *)&message->event;
 2
 3uintptr_t ptr = *(uintptr_t *)raw;
 4printf("    first field as ptr: 0x%lx\n", ptr);
 5
 6        // validate pointer looks reasonable before dereferencing
 7        if(ptr > 0x100000000 && ptr < 0x7fffffffffff)
 8        {
 9            printf("    ptr contents (first 512 bytes):\n");
10            const uint8_t *ptrData = (const uint8_t *)ptr;
11            for(int i = 0; i < 512; i++) {
12                if(i % 16 == 0) printf("    +0x%03x -> ", i);
13                printf("%02x ", ptrData[i]);
14                if((i+1) % 16 == 0) {
15                    printf("|");
16                    for(int j = i-15; j <= i; j++)
17                        printf("%c", (ptrData[j] >= 0x20 && ptrData[j] < 0x7f) ? ptrData[j] : '.');
18                    printf("|\n");
19                }
20            }
21        }

What does this show us?

# ./newESEvents
...

[*] event type: 153
    action_type: AUTH
    process pid: 434
    process path: /usr/sbin/mDNSResponder
    process uid: 65
    is platform binary: 1
+0x000: 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x010: 00 00 00 00 e9 14 00 00 02 00 00 00 c0 a8 04 01 |................|
+0x020: 00 00 00 00 00 00 00 00 00 00 00 00 e9 14 00 00 |................|
+0x030: 01 00 00 00 11 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x0a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x0b0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x0c0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x0d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x0e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x0f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x160: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x170: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x180: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x190: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x1a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x1b0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x1c0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x1d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x1e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x1f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|


[*] event type: 154
    action_type: NOTIFY
    process pid: 434
    process path: /usr/sbin/mDNSResponder
    process uid: 65
    is platform binary: 1
+0x000: 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x010: 00 00 00 00 e9 14 00 00 02 00 00 00 c0 a8 04 01 |................|
+0x020: 00 00 00 00 00 00 00 00 00 00 00 00 e9 14 00 00 |................|
+0x030: 01 00 00 00 11 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x050: 00 00 00 00 00 00 00 00 00 d6 01 00 00 00 00 00 |................|
+0x060: 18 00 00 00 00 00 00 00 00 10 00 00 20 00 08 00 |............ ...|
+0x070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x080: 00 00 00 00 00 00 00 00 63 6f 6d 2e 61 70 70 6c |........com.appl|
+0x090: 65 2e 57 65 62 4b 69 74 2e 4e 65 74 77 6f 72 6b |e.WebKit.Network|
+0x0a0: 69 6e 67 00 00 00 00 00 38 a4 02 00 00 00 00 00 |ing.....8.......|
+0x0b0: 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x0c0: 00 00 00 00 00 00 00 00 02 00 00 00 08 08 08 08 |................|
+0x0d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 35 00 00 |.............5..|
+0x0e0: 01 00 00 00 11 00 00 00 01 00 00 00 00 00 00 00 |................|
+0x0f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x160: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x170: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x180: 00 00 00 00 00 00 00 00 00 00 00 00 00 2f 53 79 |............./Sy|
+0x190: 73 74 65 6d 2f 56 6f 6c 75 6d 65 73 2f 50 72 65 |stem/Volumes/Pre|
+0x1a0: 62 6f 6f 74 2f 43 72 79 70 74 65 78 65 73 2f 49 |boot/Cryptexes/I|
+0x1b0: 6e 63 6f 6d 69 6e 67 2f 4f 53 2f 53 79 73 74 65 |ncoming/OS/Syste|
+0x1c0: 6d 2f 4c 69 62 72 61 72 79 2f 46 72 61 6d 65 77 |m/Library/Framew|
+0x1d0: 6f 72 6b 73 2f 57 65 62 4b 69 74 2e 66 72 61 6d |orks/WebKit.fram|
+0x1e0: 65 77 6f 72 6b 2f 56 65 72 73 69 6f 6e 73 2f 41 |ework/Versions/A|
+0x1f0: 2f 58 50 43 53 65 72 76 69 63 65 73 2f 63 6f 6d |/XPCServices/com|

A bunch of flags and numbers (IP addresses?), but in the case of the NOTIFY event (which is delivered reactively, after the fact), a few recognizable paths.

Next I simply brain-dumped into Claude, fed it a bunch of the raw output from a sample of the events, and told it to work its magic …which it did!

First, it confirmed these events were likely related to networking (recall the responsible process was often mDNSResponder). Moreover, it was able to build a structure for the raw data that honestly seems pretty spot on:

 1typedef struct {
 2    uint32_t  address_family;     // 0x00 — AF_INET=2, AF_INET6=30
 3    uint8_t   padding1[20];       // 0x04
 4    uint32_t  address_family2;    // 0x18
 5    uint8_t   resolved_ip[4];     // 0x1c — resolved IP address
 6    uint8_t   padding2[24];       // 0x20
 7    uint32_t  hostname_len;       // 0x40 — length of hostname
 8    uint8_t   padding3[8];        // 0x44 — ptr to something at 0x48
 9    char      hostname[256];      // 0x50 — null terminated hostname
10    // NOTIFY only:
11    char   resolver_path[];    // 0xe5+ — XPC resolver path
12} es_event_reserved_network_t;

Updating our callback code, we can now parse the events 🔥

Here’s the output of running curl google.com:

# ./newESEvents
...

[*] event type: 153
    action_type: AUTH
    version: 10
    deadline: 260587420990 (15.000 seconds remaining)
    process pid: 3366
    process path: /usr/bin/curl
    process uid: 501
    is platform binary: 1
+0x000: 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
+0x010: 00 00 00 00 00 00 00 00 02 00 00 00 8e fa 49 6e |..............In|
+0x020: 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 |............P...|
+0x030: 00 00 00 00 06 00 00 00 01 00 00 00 00 00 00 00 |................|
+0x040: 0a 00 00 00 00 00 00 00 b8 f3 e5 04 01 00 00 00 |................|
+0x050: 67 6f 6f 67 6c 65 2e 63 6f 6d 00 00 00 00 00 00 |google.com......|
+0x060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
...
    hostname: google.com
    resolved: 142.250.73.110
    af: IPv4
[*] event type: 154
    action_type: NOTIFY
    version: 10
    process pid: 3366
    process path: /usr/bin/curl
    process uid: 501
    is platform binary: 1
...
    hostname: google.com
    resolved: 142.250.73.110
    af: IPv4
    resolver: /System/Volumes/Preboot/Cryptexes/Incoming/OS/System/Library/Frameworks/WebKit.framework/Versions/A/XPCServices/com.apple.WebKit.Networking.xpc/Contents/MacOS/com.apple.WebKit.Networking

At this point we can fairly confidently state the following:

• ES_EVENT_TYPE_RESERVED_5 (153): Network Connection AUTH
  • Fires before an outbound network connection is made
  • AUTH event that you can allow or deny it
  • Contains the destination hostname (if DNS-based) or IP (if direct)
  • Process is the one initiating the connection (curl, mDNSResponder, etc.)
  • 15 second deadline to respond

…this is efffectively a network firewall hook!

• ES_EVENT_TYPE_RESERVED_6 (154): Network Connection NOTIFY
  • Fires after the connection attempt completes
  • NOTIFY only (informational, no allow/deny)
  • Same struct layout as 153, plus resolver path
  • Contains the resolved IP even for hostname-based connections
  • Includes the XPC resolver path (e.g. com.apple.WebKit.Networking) identifying the true originating process when mDNSResponder is the ES process

Ok, this is so freaking cool! Why? Because it means we can write network-centric security tools via Endpoint Security! Previously this was only possible via a Network Extension, which was rather complex and required significant user interaction to deploy.

🤯 LuLu via ES!?

To see if this was actually practical, I decided to see if I could add this capability to LuLu, our free, open-source firewall.

The idea was simple: currently LuLu leverages a Network Extension which routes all network flows into LuLu, where it can then apply rules (or ask the user) to only allow authorized network traffic. What would happen if we could just turn LuLu into an Endpoint Security client that subscribes to ES_EVENT_TYPE_RESERVED_5 (153) — the “Network Connection AUTH” event — and obtain network events from this new source?

Turns out it totally worked!

First, in LuLu’s System Extension, if we’re on macOS 26.4+ we instantiate and start a custom ESMonitor object:

1if(@available(macOS 26.4, *)) {
2
3        os_log_debug(logHandle, "macOS 26.4+ detected, using ES network events");
4
5        ESMonitor *esMonitor = [[ESMonitor alloc] init];
6        [esMonitor start];
7
8        // skip NEProvider / sysext entirely
9}

Next, it simply subscribes to the ES_EVENT_TYPE_RESERVED_5 event:

1es_new_client(&_esClient, ^(es_client_t *client, const es_message_t *msg) {
2        [self handleESMessage:msg client:client];
3});
4
5
6es_event_type_t events[] = { ES_EVENT_TYPE_RESERVED_5 };
7es_subscribe(_esClient, events, 1);

For new network events, it calls the handleESMessage:client: method, which extracts the information LuLu needs to find matching rules or prompt the user, specifically the process responsible for the network event, and the remote endpoint.

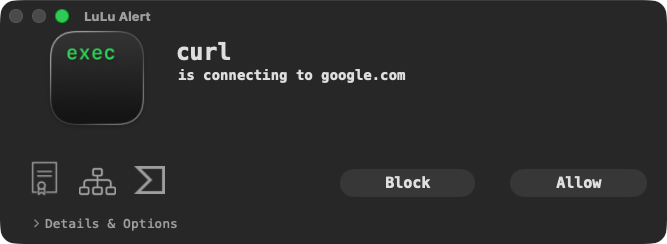

And that’s basically it! The rest of LuLu is blissfully unaware of where the network event is coming from (e.g. a Network Extension or this new ES event), and happily performs its normal rule matching and user alerting. Neat-o!

🤔 Pros and Cons?

Let’s wrap this up with a few notable points to be aware of.

The pros: as of macOS 26.4, Apple’s Endpoint Security can provide just enough information that a complex Network Extension is no longer needed for simple network monitoring tools. That’s cause for celebration!

The cons? There are several, in no particular order:

1. Network Extensions are still the way to go if your tool needs to examine the contents of packets, or perform more complex networking actions such as traffic proxying or content inspection.

2. This only works on macOS 26.4, and is still undocumented by Apple, who will likely object if you use this in production code.

3. Endpoint Security AUTH events have a deadline that must be respected, otherwise macOS will terminate your ES client. For the new ES_EVENT_TYPE_RESERVED_5 event it’s only 15 seconds. Sure, that’s long enough for an EDR, but likely not for a firewall that has to prompt the user, who might take a while to respond. When the deadline expires, the firewall would have to default to either allowing or denying the connection. Network Extensions, on the other hand, allow you to pause a network event indefinitely, giving the user all the time in the world to respond to a firewall alert.

4. You’ll need Apple to grant you the com.apple.developer.endpoint-security.client entitlement. Network Extensions, while also requiring entitlements, allow you to grant yourself the needed entitlement (e.g. content-filter-provider-systemextension).

5. The lifecycle of ES AUTH messages is a bit nuanced. For example, if you want to respond to them asynchronously, you’ll have to manually retain and then release them later.

👋🏼 Takeaways

macOS 26.4 quietly introduced several undocumented Endpoint Security events. Two of them — ES_EVENT_TYPE_RESERVED_5 and ES_EVENT_TYPE_RESERVED_6 — turn out to be network connection AUTH and NOTIFY events respectively, providing hook into all outbound network connections.

By reverse engineering the raw event bytes we were able to reconstruct the undocumented event struct, extracting the destination hostname, resolved IP address, address family, and (in NOTIFY events) the true originating process path. We then validated the approach by successfully wiring these events into LuLu as a drop-in replacement for its Network Extension, allowing LuLu to monitor and enforce network rules entirely via Endpoint Security on macOS 26.4+.

The bottom line: for security tools that need network visibility without the complexity of a full Network Extension, these new ES events are a compelling option — just be aware they are undocumented, carry a 15-second response deadline, and require Apple to grant you the ES client entitlement.

💕 Support

Love these blog posts and free tools? You can support them via my Patreon page!
